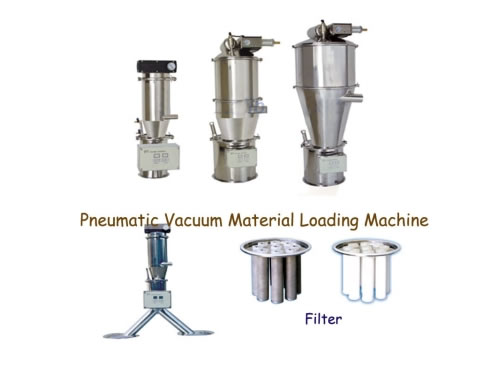

- Pneumatic Vacuum Loading Machine
- Powder Removal Machine
- YPJ-C Capsule Polisher
- XCJ-36 Suction machine
- Wire Drawing Die
- The Nature Diamond Finished Drawing Die
- Natrual Diamond Finshed Tin Plated Drawing Die
- Imported Polycrytal Finished Drawing Die
- Advanced Polycrytal Finished Drawing Die
- Natural Dlamond Semi-Finished Drawing Die
- Natural Diamond semi-finished Tin plated drawing die
- Advanced Polycrytal Semi-Finished Drawing Die
- Shaped Wire Drawing Die
- Enamelled Die

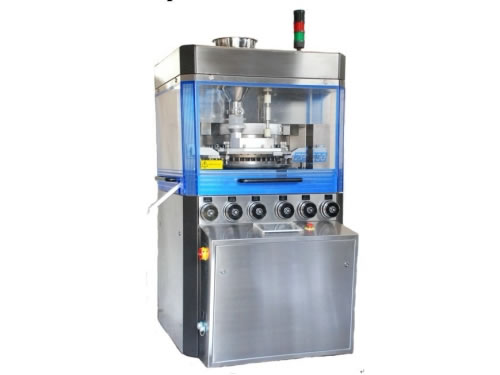

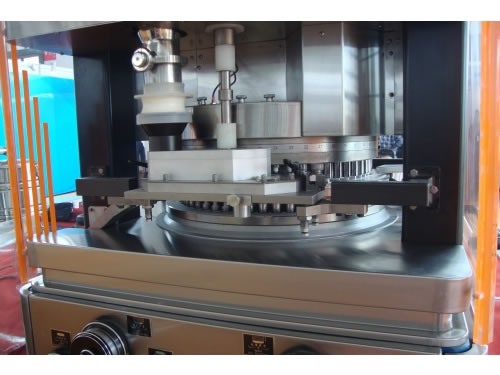

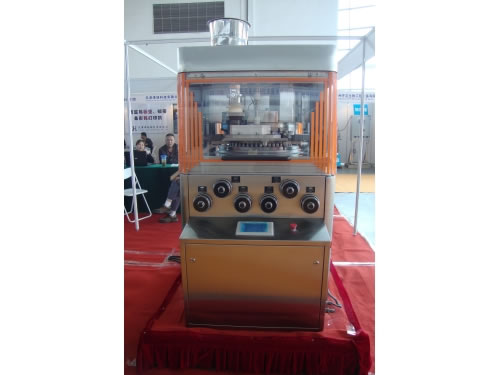

HZP 235/243 High Speed Tablet Press Machine
Description
HZP 235/243 high speed tablet press is suitable for mass production of tablets used in high-end pharmaceutical health care products industry. This tablet compression machine is manufactured complying with GMP requirements.
Features of HZP 235/243 High Speed Tablet Press
1. It is equipped with forced feeding device and various forms of impellors, so it could satisfy demands of different materials to ensure the feeding precision.
2. The tablet compression machine runs smoothly and could press the materials that are difficult to mould.
3. High speed tablet press has special oil-resistant and dustproof system that can avoid punching blockage.
4. It is designed with an independent view window with high definition.
5. Controlled by PLC and man-machine interface, it’s simple to operate.
6. When there is no powder in the hopper or when pressure overloads, the tablet compression machine can stop automatically.
7. High speed tablet press has automatic lubrication system. The oil could be given according to the using frequency.
Main Technical Parameters
| Type | HZP235 | HZP243 | |
| Number of Dies | 35 | 43 | |
| Standard of Punches | IPT | IPT | |
| Max. Pressure (KN) | 80 | 80 | |
| Normal Pressure (KN) | 20 | 20 | |
| Max. Filling Depth (mm) | 18 | 18 | |
| Max. Turret Speed (1/min) | 45 | 45 | |
| Max. Diameter of Tablet (mm) | 25 | 18 | |
| Max. Tablet Output | 189000 | 232200 | |
| Main Motor Power (kW) | 7.5 | 7.5 | |
| Height (mm) | Without Feed Hopper | 1750 | 1750 |
| With Feed Hopper | 1900 | 1900 | |
| Size (mm) | 1170 × 1290 | 1170 × 1290 | |
| Weight (kg) | 2800 | 2800 | |
Delivery
The delivery time is 30 days for HZP243 high speed tablet compression machine with corollary equipment, while 60 days for HZP235 high speed tablet press with corollary equipment.
Shanghai Chuanchu Industry Co., Ltd. is dedicated to manufacturing pharmaceutical machinery and packaging equipment in China. Our products mainly include powder mixer, granulator, pulverizer, sugar coating machine, capsule filling machine, tablet compression machine, packaging machine and other auxiliary machines. Our company can send technicians to customers’ factory for installing and adjusting the high speed tablet press and training workers as needed. The installing and adjusting cost is around 100 USD per day. Customers should pay round tickets and accommodation expenses for our technicians.
