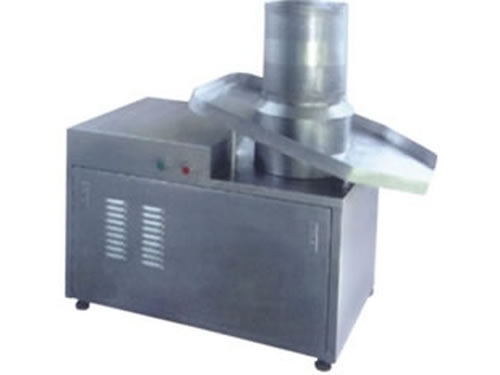

ZL Series Rotary Granulator
Introduction
ZL rotary granulator can press the mixed substances into the demanded particles. It is especially suitable for material of higher viscidity. This granulating machine is widely used in pharmacy, food, chemical industry and solid beverage. Our company can supply ZL250 and ZL300 rotary granulators. They are exported to more than 30 countries around the world.
Features
1. The part where this granulating machine contacts with the material is made of stainless steel.
2. It has reasonable structure and high granulation shaping rate.
3. ZL rotary granulator sends out materials automatically so as to avoid the damage caused by manual sending.
4. It is quite suitable for continuous productive process.
Parameters of ZL Rotary Granulating Machine
| Model | ZL250 (A) | ZL300 |
| Trough Capacity (L) | 250 | 300 |
| Granule Diameter (mm) | 2-2.2 (Customized) | 1.8-2.5 (Customized) |
| Overall Size (mm) | 700 × 540 × 1300 | 880 × 640 × 1300 |
| Motor Power (kW) | 3 | 3 |
| Weight (kg) | 350 | 400 |
| Capacity (kg/h) | 100-200 | 140-400 |
Shanghai Chuanchu Industry Co., Ltd. is a specialized rotary granulator manufacturer in China. We have gained recognition from a large of clients due to our rich production, marketing and service experience. Besides, we keep researching new products to meet the needs of customers and markets. Located in Shanghai, the biggest port city of China, we provide convenient transportation, by land, air or sea. This can greatly reduce your transportation cost. If you need granulating machines, please contact us freely.
