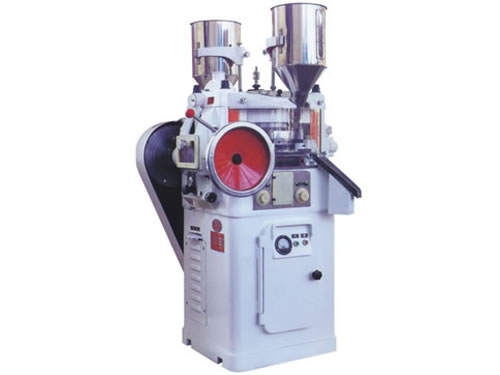

ZP33 Rotary Tablet Press Machine
Introduction
ZP33 rotary tablet press machine is designed for pressing round tablets from different kinds of granular materials. It is suitable for batch production of tablets. This tablet compression machine is manufactured adopting the latest technology, using high quality raw materials and following all international specifications. The rotary tablet press machine is well received for high durability, easy operation, easy maintenance, etc. It won the Fine Quality Product Prize awarded by the China National Medical Management Bureau.
Characteristics
1. This rotary tablet compression machine is equipped with hydraulic power pack and closed front electric control panel.
2. A powder suction unit is attached to the rotary tablet press machine to take in. The residual powder can be eliminated and the collected powder material can be reused.
3. During operation, the speed of turret rotation, the depth of filling material and the thickness of tablets can be adjusted.
4. The tablet compression machine has mechanical buffer unit that can prevent punches and apparatus from overload damage.
Parameters of ZP33 Rotary Tablet Press Machine
| Dies (Sets) | 33 |
| Max. Pressure (KN) | 40 |
| Max. Diameter of Tablet (mm) | 12 |
| Max. Depth of Filling (mm) | 15 |
| Thickness of Largest Tablet (mm) | 6 |
| Turret Speed (r/min) | 11-28 |
| Production Capacity (pc/h) | 43000-110000 |
| Motor (kW) | 2.2 |
| Overall Dimensions (mm) | 950 × 960 × 1600 |
| Net Weight (kg) | 850 |
China Machinery Group Shanghai Co.,Ltd. is a professional supplier and exporter of tablet compression machines. We are engaged in providing high quality rotary tablet press machines to meet our customers’ requirements for pharmaceutical, food, cosmetic and chemical industries. The guarantee period is thirteen months from shipment date. During this period, we will provide free maintenance and free spare parts that caused by the tablet compression machine’s quality, but buyers need to pay the express fee. Parts damaged because of mishandling and consumable parts are not covered by any warranty.
